MACHINE SCREWS or METAL THREADS (Mt's) are one of the most popular forms of industrial fastener, used extensively in all types of manufacturing and assembly processes. We stock a large range including PAN POZI, PAN SLTD, CSK POZI, CSK SLTD, CHEESE SLTD and RAISED CSK, and in a wide range of THREAD FORMS and MATERIALS. |

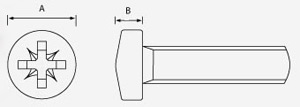

Nominal Dia |
Pitch |
A (max) |
B (max) |
Crs Driver |
M1.6 |
0.35 |
0.80 |
1.30 |
0 |
M2 |
0.40 |
1.00 |
1.60 |
1 |
M2.5 |
0.45 |
1.25 |
2.00 |
1 |
M3 |
0.50 |
1.50 |
2.40 |
1 |
M3.5 |
0.60 |
1.75 |
2.60 |
2 |
M4 |
0.70 |
2.00 |
3.10 |
2 |
M5 |
0.80 |
10.00 |
3.80 |
2 |
M6 |
1.00 |
12.00 |
4.60 |
3 |
M8 |
1.25 |
16.00 |
6.00 |
4 |
M10 |
1.50 |
20.00 |
7.50 |
4 |
|
Thread Forms
Metric, UNF, UNC, BSW, BA
Materials
Mild steel
A2/304 Stainless Steel
A4/316 Stainless Steel
Brass
Nylon
Finishes
Bright zinc plated
Zinc and yellow
Black zinc
Nickel |
