Self Tapping Screws
SELF TAPPING SCREWS have been designed to tap their own thread form in the mating material, thus eliminating the need for a separate tapping operation prior to assembly.
Standard self tappers include types AB (gimlet point) and B (blunt point) together with a range of specialised products for use in the plastics and electronics industry, and a range of TRILOBULAR THREAD FORMING SCREWS. Popular head styles include PAN, CSK and RAISED CSK in POZI and SLTD drives. |

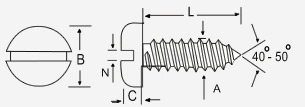

Metric DIN 7981
|
|
Normal Size (A)
|
B |
C |
Recess |
Gauge |
Metric |
|
|
Size |
2 |
2.2 |
4.20 |
1.35 |
0.6 |
4 |
2.9 |
5.60 |
1.75 |
0.8 |
6 |
3.5 |
6.90 |
2.10 |
1.0 |
7 |
3.9 |
7.50 |
2.25 |
1.0 |
8 |
4.2 |
8.20 |
2.45 |
1.2 |
10 |
4.8 |
9.50 |
2.80 |
1.2 |
12 |
5.5 |
10.80 |
3.20 |
1.6 |
14 |
6.3 |
12.50 |
3.65 |
1.6 |
L - For this product length is specified from underneath the head
All Dimensions are nominal and intended for guide purposes only. |
Materials
Case Hardened Steel
A2/304 Stainless Steel
A4/316 Stainless Steel
Finishes
Bright zinc plated
Zinc and yellow
Black zinc
|
|
