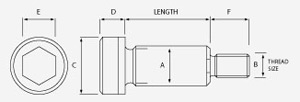

A (max) |
B |
Pitch |
C (max) |
D (max) |
E (nom) |
F (max) |
6mm |
M5 |
0.80 |
10 |
4.5 |
3mm |
9.75 |
8mm |
M6 |
1.00 |
13 |
5.5 |
4mm |
11.25 |
10mm |
M8 |
1.25 |
16 |
7.0 |
5mm |
13.25 |
12mm |
M10 |
1.5 |
18 |
9.0 |
6mm |
16.40 |
16mm |
M12 |
1.75 |
24 |
11.0 |
8mm |
18.40 |
20mm |
M16 |
2.0 |
30 |
14.0 |
10mm |
22.40 |
24mm |
M20 |
2.5 |
36 |
16.0 |
12mm |
27.50 |
|
Thread Forms
Metric, UNC, BSW,
BSF
Materials
Grade 8.8,
Grade 10.9, Grade 12.9
A2/304 Stainless Steel
A4/316 Stainless Steel
Finishes
Bright zinc plated
Zinc and yellow
Black zinc
Nickel |
